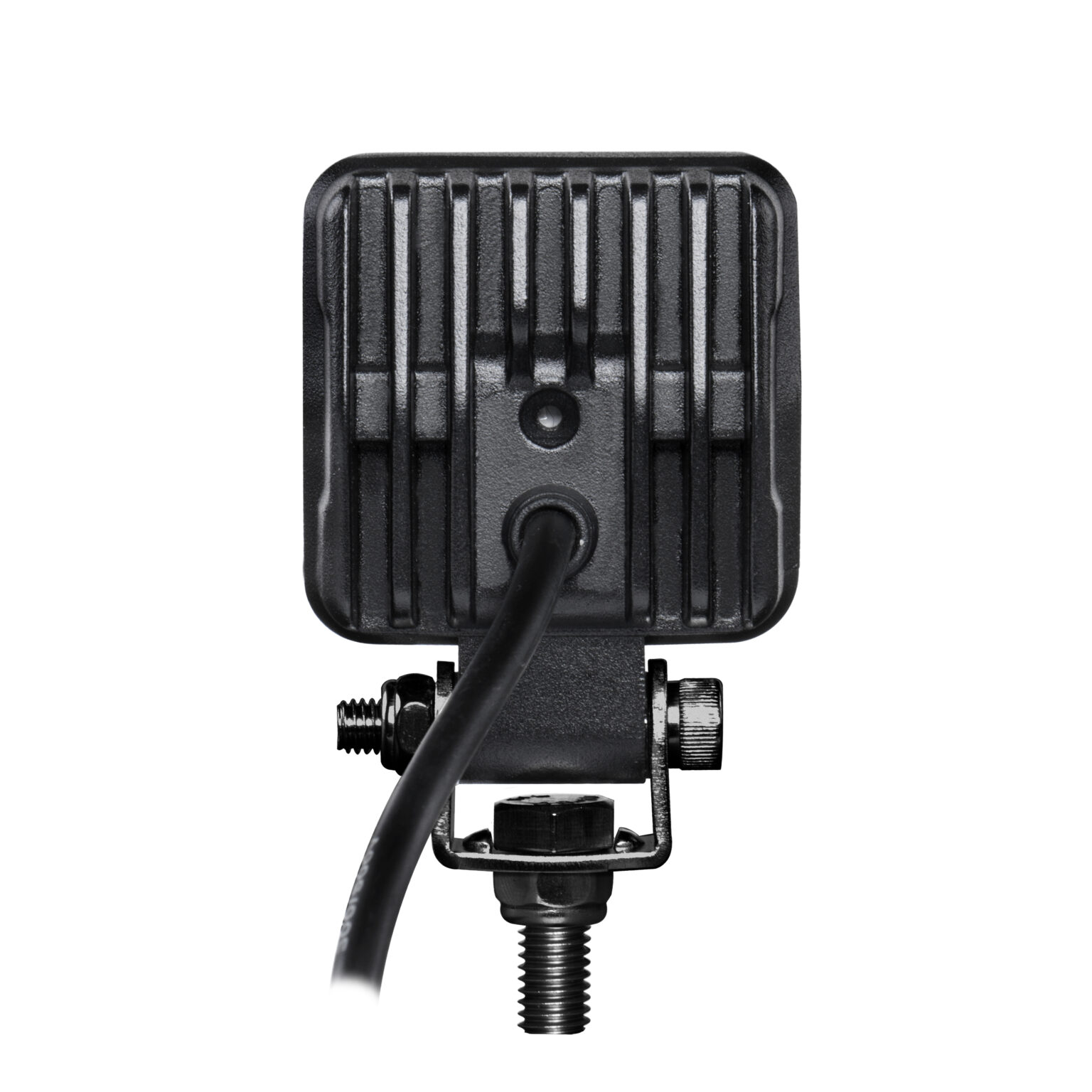

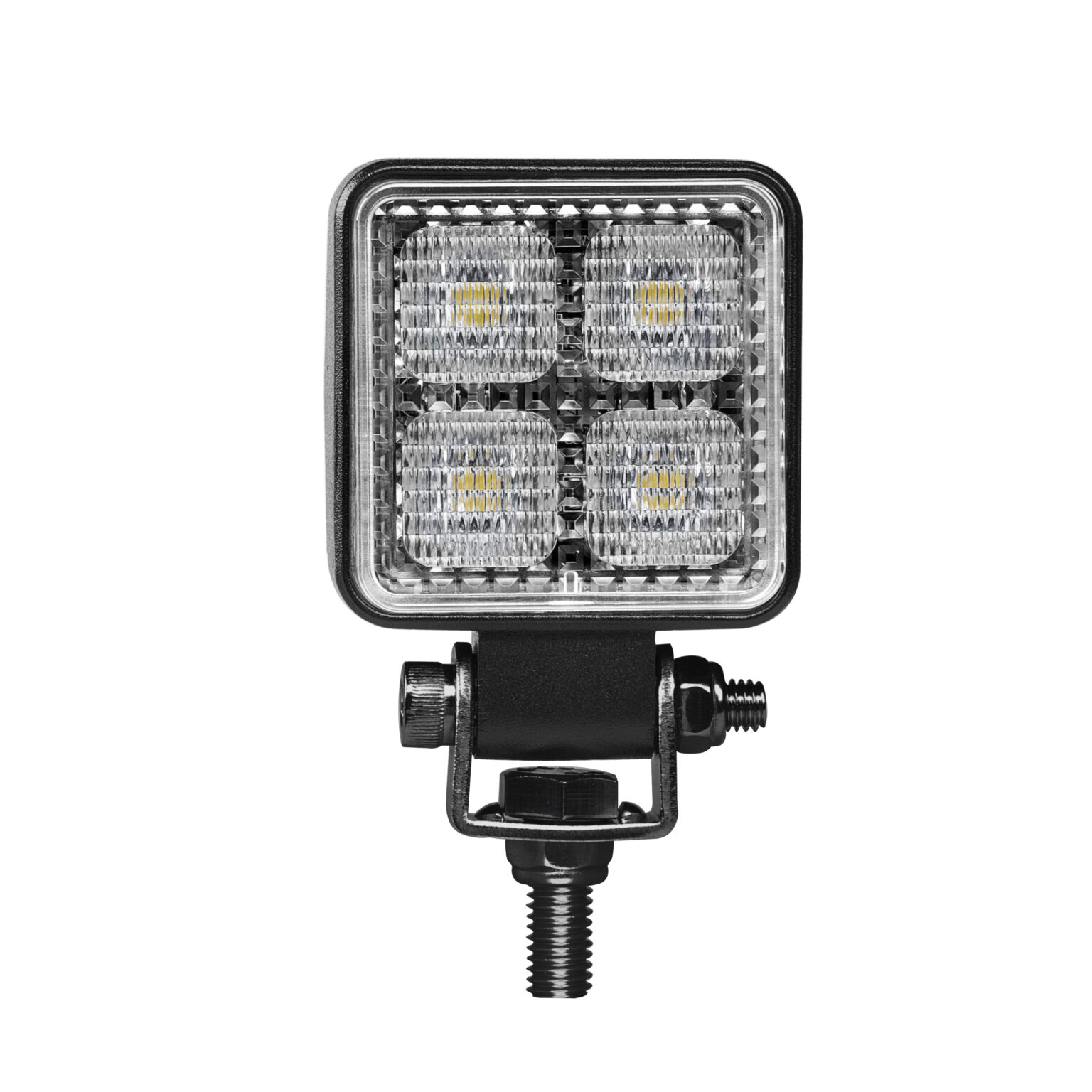

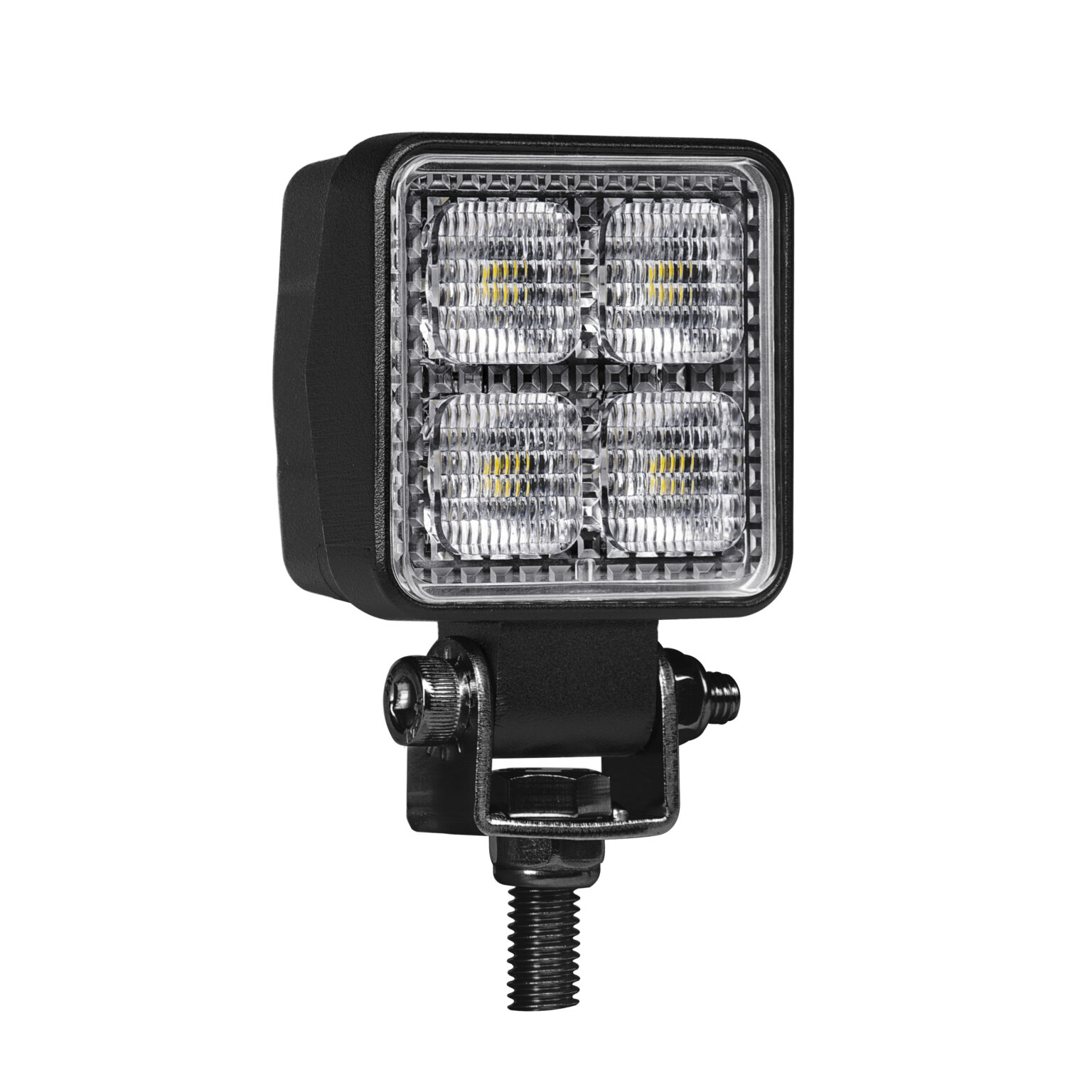

AES Flood Beam Work Lamp LED560FL

The AES LED560FL Flood Beam Work Lamp is a compact and powerful lighting solution designed for use in confined or hard-to-reach areas. Measuring just 2 inches, its small size makes it ideal for installation in vehicle steps, bumpers, or any location where space is limited.

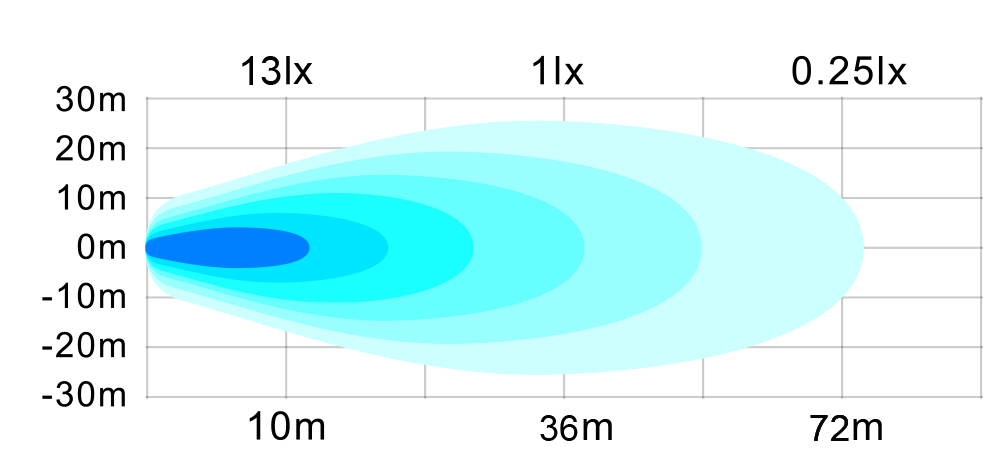

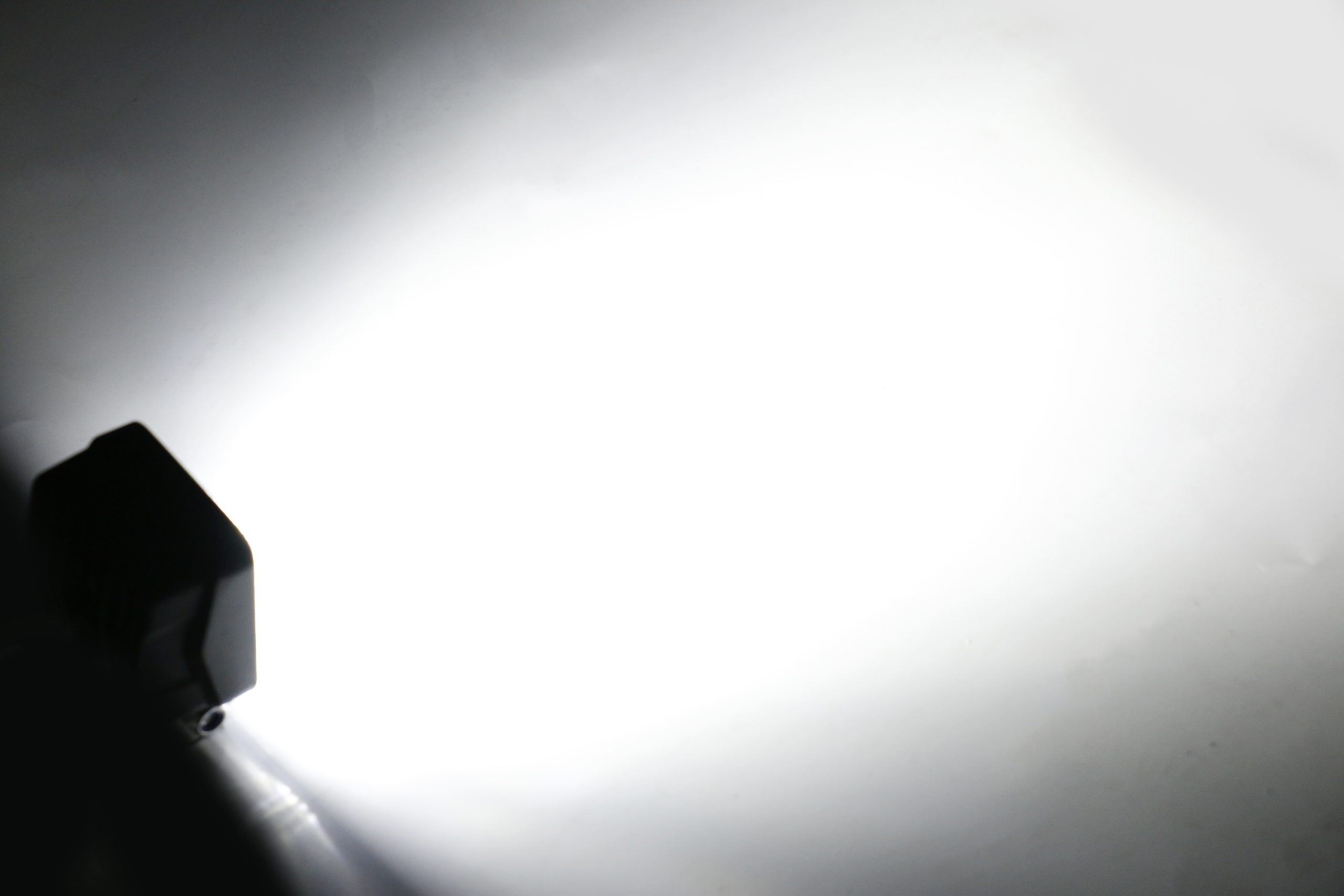

Fitted with eight high-performance Osram 3030 LEDs, the lamp delivers 943 lumens of crisp, white light at a colour temperature of 6500K. The wide flood beam provides excellent visibility for work areas, reverse functions, and general illumination. With a voltage range of 10–30V DC, it suits a broad range of vehicles and machinery.

Rated IP68 and IP69K, the LED560FL is fully protected against dust, immersion, and high-pressure washing. It also meets ECE R10 and R23 approvals for electromagnetic compatibility and reverse lighting compliance. A Superseal connector is available for fast, weatherproof installation.

LED560FL technical information:

• LED power: 12W with wide flood beam
• Light output: 943 lumens at 6500K colour temperature
• Compact 2-inch design for tight-space installation
• IP68 and IP69K rated for dust and water protection
• Certifications: ECE R10 and R23 approved
• Optional Superseal connector
• Warranty: 3 years

A versatile, space-saving work lamp ideal for vehicle steps, auxiliary lighting, and harsh environments.

Download LED560FL datasheet

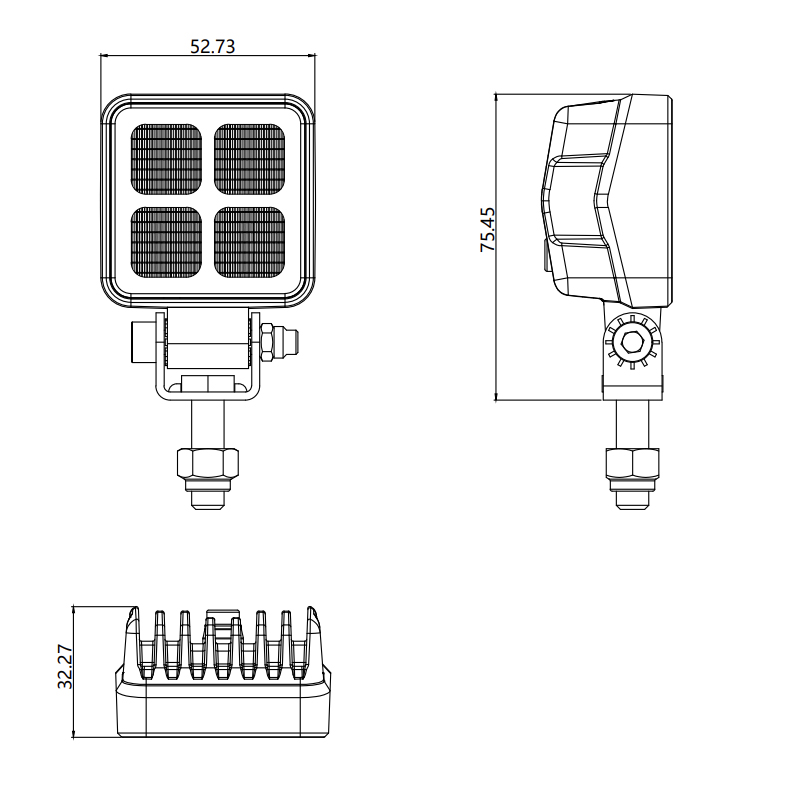

For full specifications, dimensions, and wiring details, Download Data Sheet here.
