AES Flood Beam Work Lamp LED561FL

The AES Flood Beam Work Lamp LED561FL is a compact and durable lighting solution designed for various vehicle and machinery applications. Its low-profile square design with a single-bolt fitting allows for easy installation in tight or multiple locations. Equipped with five high-performance 1.5W LEDs, the lamp delivers 600 lumens of bright light at a 5700K colour temperature, providing clear visibility in low-light conditions. Built to withstand harsh environments, it is rated IP67 and IP69K for protection against dust and water. The LED561FL meets ECE R10 and R23 standards and is available with an optional Superseal connector for secure and fast wiring.

LED561FL Technical information

• LED power: 9W

• Operating voltage: DC 10–30V

• Colour temperature: 5700K

• LED configuration: 5 x 1.5W LEDs

• Light output: 600 lumens

• Beam type: Flood beam

• IP rating: IP67 and IP69K

• Certifications: ECE R10, ECE R23

• Mounting: Single bolt fitting

• Optional: Superseal connector

• Warranty: 2 years

Download LED561FL datasheet

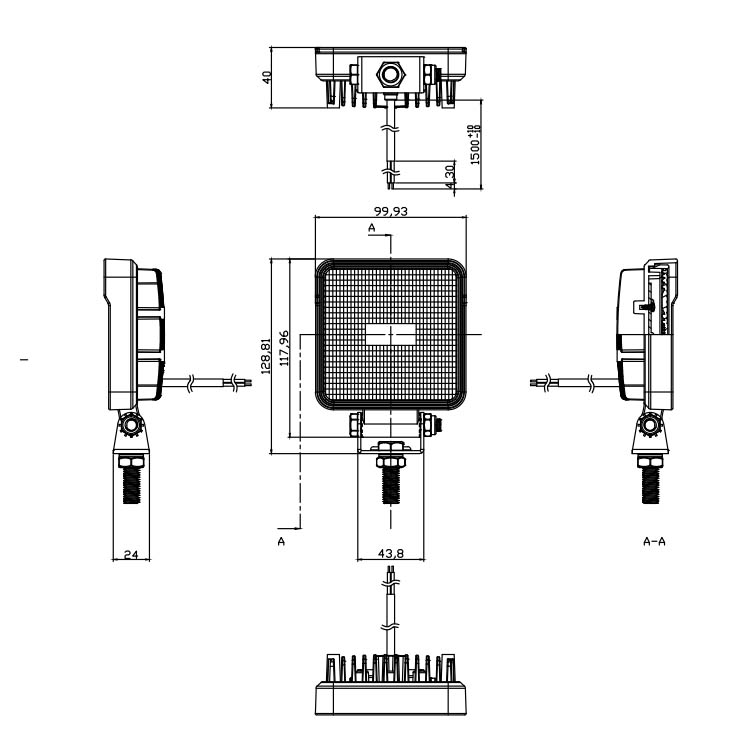

For full specifications, dimensions, and wiring details, Download Data Sheet here.
