Durite 2 Channel 7″ Mirror Image Reversing Camera System – 12V/24V

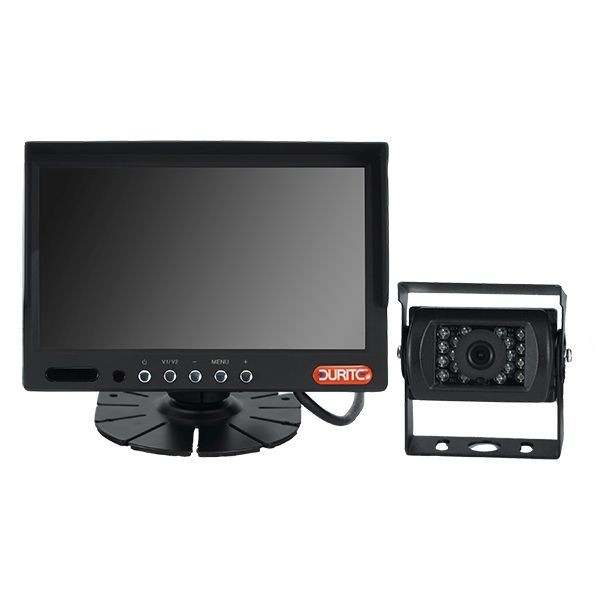

Durite 0-776-67 2 Channel Reversing Camera System, includes 7″ Colour TFT LCD monitor & 1 rear view Sony CCD Camera. Suitable for 12V/24V applications. High resolution monitor and bracket is suitable for most cabins while the shielded cable ensures robust installation on all truck sizes and industrial vehicles. A great value all in one box reversing camera system.

• Colour camera protected to IP68.
• Supplied with remote control.
• 1 additional camera can be used with this kit.

MONITOR –
Display Device Colour TFT LCD
Size 7 Inch
Interface Digital TTL
Resolution 800 x RGB x 480
Luminance (Nits) 500
System PAL / NTSC (Auto)
Contrast Ratio 500:1
Power Consumption 5W
Power Supply 12V/24V DC
View Angle (LR/UD) L 60, R 60, U 40, D 60 (Degrees)
Connect Plug 4 Pin Aviation
Weight 320g
Dimensions L 22 x W 172 x H 115mm
Certificate E Marked

CAMERA –
Type 1/3″ Sony CCD
Voltage 12VDC
Sensitivity 0 Lux with IR on
S/N Ratio 48dB
Current Draw 200mA
Electronic Shutter Auto
Lens f 2.8mm
Video Output 1 Vpp, 75Ohm
IP Rating IP68
Auto Gain Control Yes
Microphone Yes
Weight 360g
Dimensions L 84 x W 76 x H 70mm
Certificate E Marked
