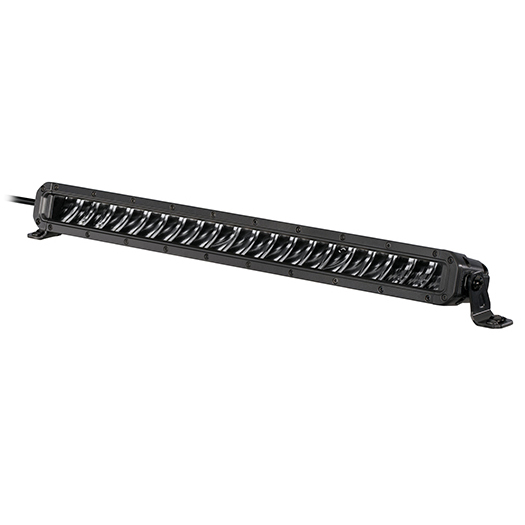

HELLA Black Magic Tough 20″ Slim LED Light Bar 12/24V 6000lm

The HELLA Black Magic Tough 20″ Slim LED Light Bar is a high-performance off-road lighting solution designed for 4x4s, SUVs, commercial vehicles and agricultural machinery. Producing up to 6,000 effective lumens with a daylight-like colour temperature of 5,700K, it delivers outstanding visibility in challenging off-road conditions.

Featuring HELLA’s signature all-black design, this slim light bar combines a rugged aluminium housing with an impact-resistant polycarbonate lens for exceptional durability. An integrated thermal management system continuously adjusts the light output to suit ambient temperatures, helping to prevent overheating while maximising performance in colder conditions.

With IP68/IP69K protection against dust, water and high-pressure washing, the Black Magic Tough Light Bar is built to perform in the harshest environments. Its 2 metre cable with open wire ends allows for flexible installation, making it ideal for mounting on roof bars, bumpers or front grilles.

Key Features

• Slim 20″ LED light bar for off-road applications
• Powerful 6,000 effective lumen output
• Daylight-like 5,700K colour temperature for improved visibility
• Advanced reflector system with high-performance LEDs
• Intelligent thermal management optimises light output and protects LEDs
• Rugged black aluminium housing
• Impact-resistant polycarbonate lens
• IP68/IP69K rated for maximum protection against dust and water
• ECE R10 approved for electromagnetic compatibility (EMC)
• 2 m cable with open wire ends for flexible installation

Specifications

• Voltage: 12/24V
• Light Output: 6,000 lm
• Lamp Type: LED
• Colour Temperature: 5,700K
• Housing Material: Aluminium
• Lens Material: Polycarbonate
• Housing Colour: Black
• Protection Rating: IP68/IP69K
• ECE Approval: R10
• Dimensions: 524 × 50 × 62 mm
• Depth: 63 mm
• Cable Length: 2,000 mm
• Connection: Open cable ends
• Mounting: Vertical screw fixing
