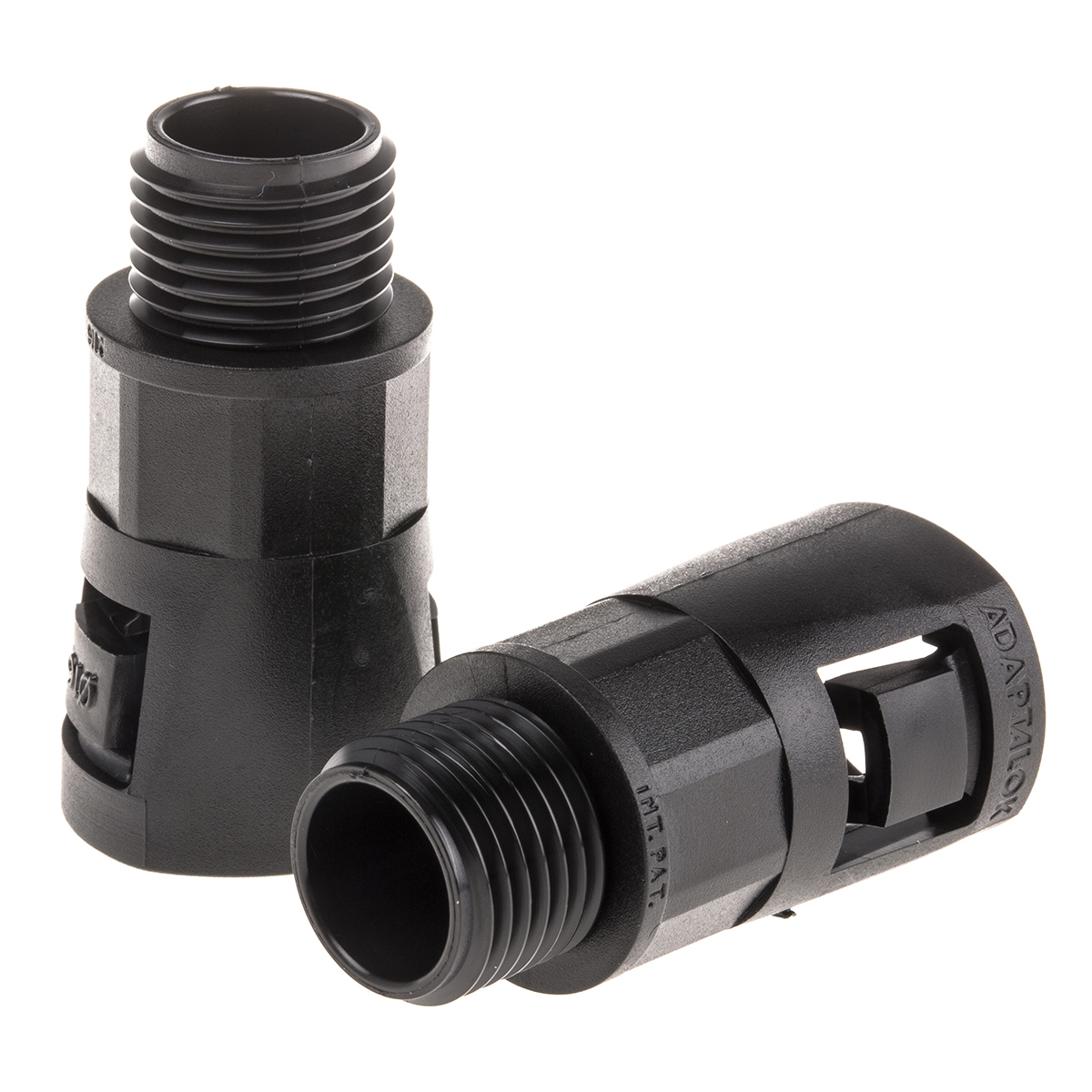

Adaptaflex AL13/M16/A/BL Straight Conduit Fitting – pack of 10

The Adaptaflex AL13/M16/A straight conduit fitting provides a reliable and durable method for connecting 13 mm nominal conduit to M16 threaded entries or knockouts. Constructed from high-quality polyamide (Nylon) 66 in black, it delivers excellent mechanical strength, resistance to chemicals, and long service life. As part of the Adaptalok Type A range, it is compatible with PAFS13 conduit and is supplied with a locknut for secure installation.

With an IP66 rating, the fitting offers strong protection against dust ingress and high-pressure water jets, making it suitable for use in both indoor and outdoor applications. It operates effectively within a temperature range of -40 °C to +120 °C, ensuring dependable performance in demanding industrial environments.

Technical information:

• Type: Straight conduit fitting, fixed male external thread

• Nominal conduit size: 13 mm

• Thread size: M16 × 1.5

• Material: Polyamide 66

• Conduit compatibility: PAFS13

• IP rating: IP66

• Locknut included: Yes

• Weight: 6.4 g

• Operating temperature: -40 °C to +120 °C

• Range: Type A – Adaptalok

• RoHS compliant: Yes

Adaptaflex Straight Conduit Fitting Application

This fitting is ideal for use in electrical and industrial installations where a robust, sealed connection is required between conduit and equipment enclosures, control panels, or machinery. Its IP66 rating makes it suitable for both indoor and outdoor applications, including environments exposed to moisture, dust, and vibration.
