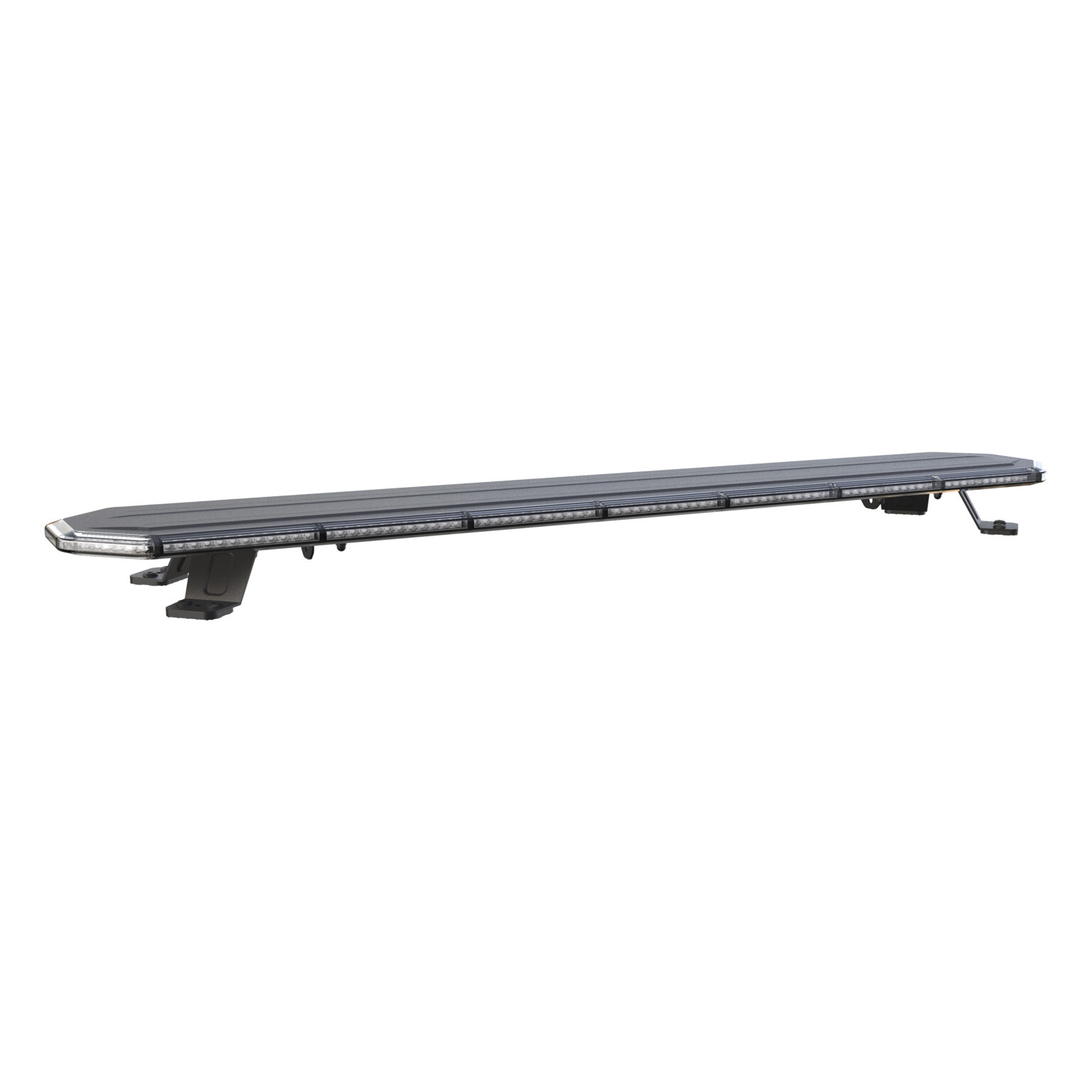

AES LED Ultra Slimline Lightbar 1223mm 4f Amber AESLB1223R65A
The AES LED Ultra Slimline Lightbar 1233mm (4ft) provides high-visibility amber lighting in a slim, durable design suited for emergency, utility, and commercial vehicles. This fully populated lightbar is built to perform in demanding environments with minimal profile impact.
Technical Spec
| LED Colour |
Amber |
|---|---|
| Voltage |
12V/24V |
Competitive Pricing
Cost-effective solutions
Quality Products
Trusted quality
Industry Knowledge
30+ years of experience
Customer Driven
Tailored solutions
AES LED Ultra Slimline Lightbar 1223mm 4f Amber AESLB1223R65A
The AES LED Ultra Slimline Lightbar 1223mm (4ft) provides high-visibility amber lighting in a slim, durable design suited for emergency, utility, and commercial vehicles. This fully populated lightbar is built to perform in demanding environments with minimal profile impact.
It offers five flash patterns, including the default R65-approved day and night single flash, along with three directional arrows and cruise mode for enhanced signalling and control. Its rugged aluminium die-cast housing and clear polycarbonate lens ensure long-term reliability and resistance to harsh weather and road conditions.
AESLB1223R65A Key features:
-
R65-approved day/night single flash (default)
-
Five flash patterns
-
Three directional arrow modes and cruise mode
-
Robust aluminium die-cast construction
-
Clear polycarbonate lens for optimal light output
-
IP67 water and dust protection
AESLB1223R65A Technical specifications:
-
Operating voltage: 12–24V
-
LED colour: amber
-
Lens material: polycarbonate
-
Lens colour: clear
-
Housing: aluminium die-cast
-
Bracket: powder coated steel
-
Mounting: 4-bolt bracket
-
IP rating: IP67
-
Approvals: ECE, R10, R65, CISPR25
- Warranty: 3 year
A reliable and efficient lighting solution for high-visibility vehicle applications.
View the datasheet using the link.
Learn more about AES LED Lighting Brand via the link.
| Brand |
AES LED Lighting |
|---|---|
| LED Colour |
Amber |
| Voltage |
12V/24V |
