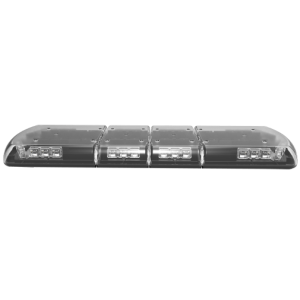

Ecco 12+ Series LED Lightbar 54″/1.37m Clear Lens 16 LED Modules

12+ Series R65 LED Lightbar
Features & Benefits

The New 12+ series LED lightbars are versatile and powerful warning devices suitable for a wide range of vehicle types and duties. Now available in eight length options with a sleek low-profile styling, durable aluminium chassis, polycarbonate base and lens. New features include 457mm centre section combined with a 305mm end section allowing for configurations in shorter lengths for more versatility on smaller vehicles. 457mm LED centre illumination with opal lens section allows for customised signage to personalise and distinguish your lightbar. A choice of clear & amber lenses increases the customisation options even further. The 12+ series LED lightbars supports three kinds of LED modules including: single and dual colour warning, stop-tail-indicator, and alley/worklight.

• Exceptional EMC performance, Industry leading CISPR 25 (Radiated + Conducted Emissions)
• Optional Integrated Safety Director (must be configured)
• LED modules: single and dual colour warning, stop-tail-indicator, and alley/work-light
• Standard configurations with work-lamps, alley lights, stop-tail-indicator are available
• ICE optic warning modules offer brighter appearance for better visibility
• Configurations available for applications where ICAO is a requirement
• 8 length options – 610mm, 760mm, 910mm, 1070mm, 1212mm, 1372mm, 1524mm, 1828mm
• Shorter lengths – 305mm end section and 457mm centre sections
• Coloured lenses – Amber, Blue & Clear
• LED centre illumination available in 457mm
• R65 Class I for Amber configurations with Amber & Clear lenses
• R65 Class II available on request and must be ordered with an Advanced Controller
• Aluminium chassis, polycarbonate base and lens
• Temperature Range: -30°C to +50°C
• Height: 63.5mm, width: 279.5mm
• Voltage: 12-24VDC
• Custom configurations are available on request
