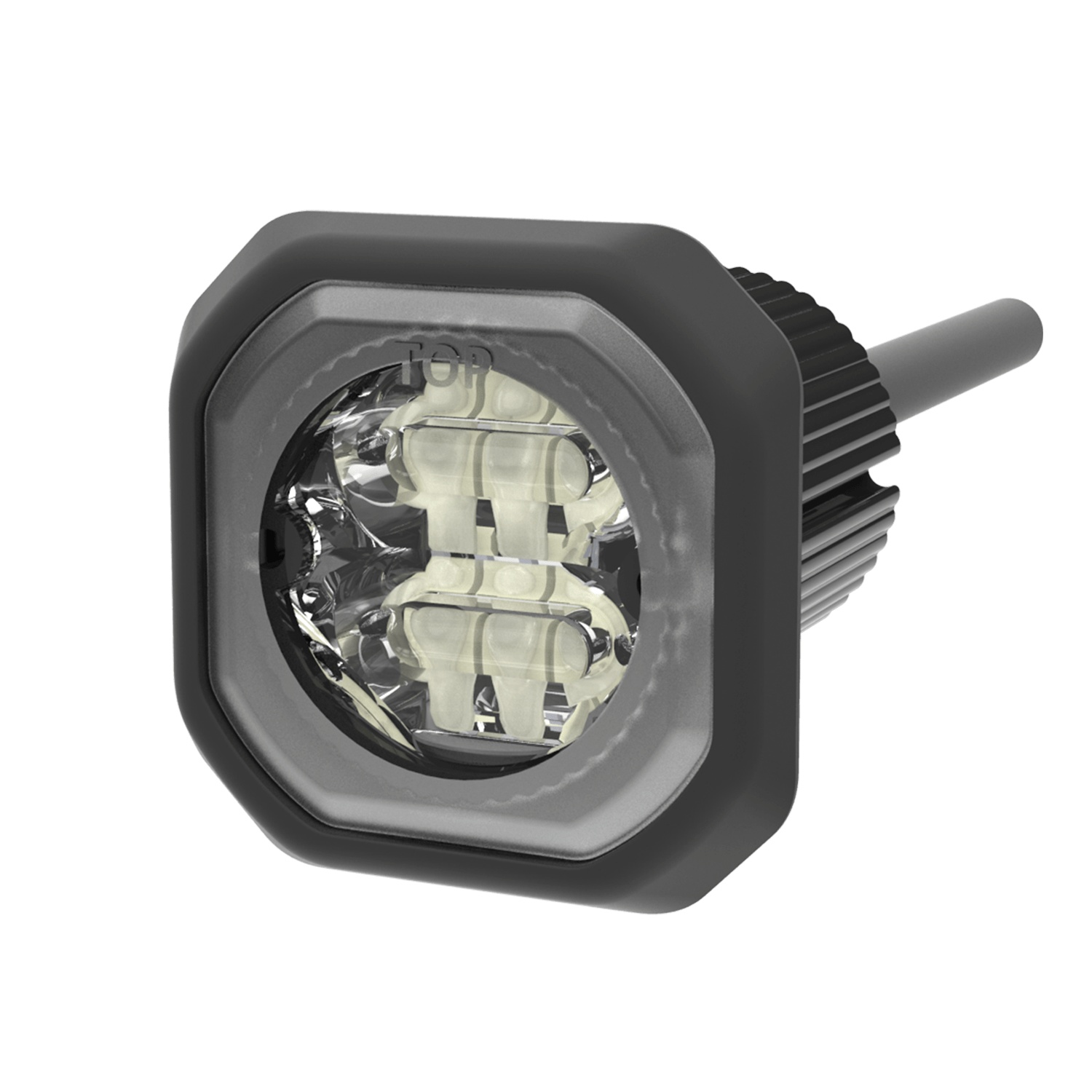

ECCO ED9040A Low-Profile 6 LEDs Warning Light 12V / 24V

The ED9040 Hide-A-LED Series is the updated version of the original and famous Button Blast direction LED from ECCO, to give you more performance with R65 Class I and Class II* certification, dual colour independently switched and more flexibility and easy installation.

A choice of 29** for single colour and 69†† flash patterns for dual colour allows the creation of an attention-getting, multi-colour warning system with half the number of lights typically required. The ED9040 offers flexibility with multiple flush mounting applications on virtually any surface, including bumpers and on the sides of vehicles.

*R65 Class II single colours only
**Not all flash patterns are R65-approved patterns – please refer to the installation manual

Features and Benefits

• Slim low-profile design with 6 powerful LEDs for a bright warning light
• All-in-module: all controls embedded in the headlight, avoiding an LED flash controller
• Optimised lens and optical system, maximising light beam in multiple single or dual colour variations
• Discreet flush mount, virtually applicable on any vehicle surface – insertable in a 1” hole, with 10” pigtail cable
• Steady burn override for worklight functionality
• Syncable with compatible ECCO directionals: ED3700, ED3701/ED3702, ED3706/ED3712, ED3766, and ED3777/ED3779 Series
• Temperature Range: -30ºC to + 50ºC (-22ºF to +122ºF

Specifications

• Surface mount
• Amber colour
• 12-24V
• Amps 1.2
• Dimensions: H 267 x W 34 x L37mm
• 5 years warranty
• Approval SAE Class 1, IP67, California Title 13, R65, R10
