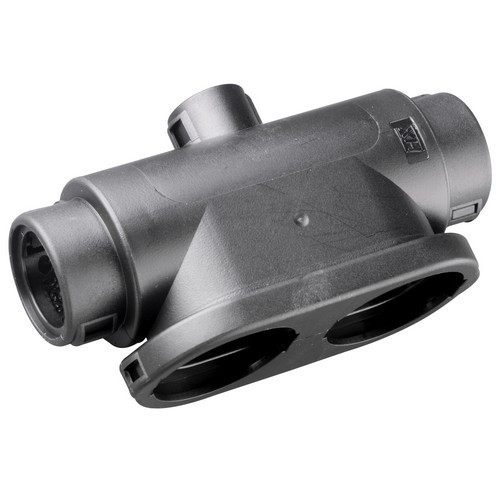

Harnessflex CI202820-DRC50 Interface

External Hinged Connector Interface

Two identical half shells snap together onto the twin outlets of the Deutsch DRC50 interface giving a 3 Way conduit fi tting. These interfaces are designed to snap together over all types of Harnessfl ex slit and unslit conduit, maintaining maximum conduit bore.

Features

• One-piece external design for unrestricted bore and quick assembly with no tools.
• High pull-off strength – conduit corrugations sit tightly into joiner junctions.
• Conduit size labels – each junction indicates nominal conduit size to aid installation
• Polyamide (Nylon) 66
• IP40 rated
• Temperature Range: -40ºC to 120ºC
• Very high UV resistance
• Self extinguishing, low smoke toxicity & halogen free

Conformity

• CE Mark to the low voltage directive
• RoHS Compliant to 2011/65/EU
• Conforms with end of life vehicle directive (ELV) EU200/53/EC
