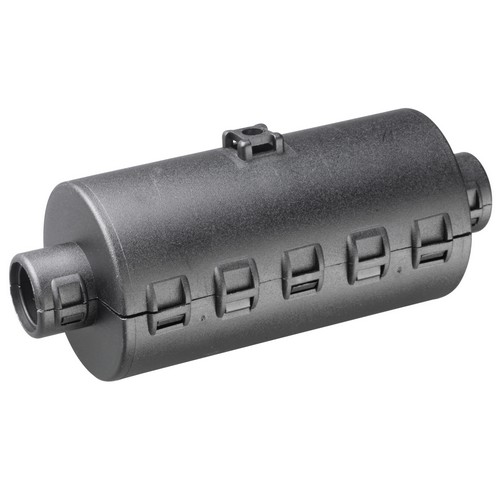

Harnessflex CPS421616 Hinged Shroud

External Hinged Protective shroud

One-piece cover providing protection for in-line connectors, fuse links, circuit breakers and splicing areas. The CPS shrouds can be used as a harness datum, due to the integrated cable tie/fir tree facility. The strong construction allows for the protection of delicate connections, or as an alternative when an interface/backshell isn’t available. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore.

Features

• One-piece external design for unrestricted bore and quick assembly with no tools.
• High pull-off strength – Conduit corrugations sit tightly into joiner junctions.
• Conduit size labels – Each junction indicates nominal conduit size to aid installation
• Polyamide (Nylon) 66
• IP40 rated
• Temperature Range: -40ºC to 120ºC
• Very high UV resistance
• Self extinguishing, low smoke toxicity & halogen free

Conformity

• CE Mark to the low voltage directive
• RoHS Compliant to 2011/65/EU
• Conforms with end of life vehicle directive (ELV) EU200/53/EC
