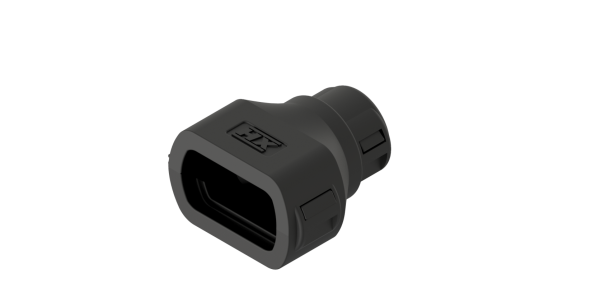

Harnessflex Heavy Duty HDSCS Backshell Interface – CI08-HDSCS

Heavy Duty Series Plug and socket backshell interface for HDSCS & CTCS XP Connector Series

The Harnessflex Heavy Duty Series offers safe and secure cable protection for TE HDSCS and Aptiv CTCS XP Type B & E connectors, helping to maintain continuous vehicle operation even in the toughest conditions.

Features & benefits:
• Provides a continuous connection between harness and connector
• Mechanical protection and a degree of ingress protection against dust
• Strain relief
• Abrasion and vibration protection
• Protects from full force of jet washing

Applications:
• Construction vehicles
• Agricultural machinery
• Trucks and other heavy duty vehicles
• Special vehicles
• Electric bus
• Autobus

Compatible with:
• All Harnessflex conduits

Material:
• Polyamide 66 (Nylon)

• UV Resistant
• Heat Stabilised

Temperature range:
• Normal use: -40 to +140°C (-40 to +248°F)

Conforms to:
• CE Mark to the low voltage directive
• RoHS Compliant to 2011/65/EU
• End of Life Vehicle directive (ELV) 2000/53/EC

Ingress protection:
• IP40

Chemical resistance guide:
• Please refer to TDS000081

Harnessflex Heavy Duty Series
connectors compatible with:

Type B
TE *-1703773-1         *-1418469-1
*-1703808-1        *-1703818-1
*-1703820-1        *-1418390-1
Aptiv 33308731         33346867
33308912         33347886
33308961         33346852
33308974        33346865
33308978        33346866
33308982        33347865
