Hella Blade 7″ LED Spotlight, 12/24V, Round, Ref.50, Crystal Clear

The HELLA VALUEFIT Blade auxiliary headlamp series combines function and design in one product. The highlight is the striking LED position light for a characteristic light design. In the version with white or amber position light, the auxiliary lamps can optionally be mounted with one of the position light variants. The amber position light can be used for off-road applications.

The round design for upright mounting is available in sizes 7″ with chrome design ring or in black. A rectangular design with chrome design ring in the size 9″ is available for both upright and pendant mounting. The size 9″ with chrome design ring is available in two mounting versions, either for upright or pendant mounting. The auxiliary headlamps are particularly suitable for mounting on the roof bar but also for other mounting locations.

Light functions: 2 – with high beam (LED)/with position light (LED). Round auxiliary headlamp with innovative LED position light design with razor-sharp contour. Position light colour: white. 7″ version with chrome design ring and ECE ref. 50. Ideal for upright mounting on off-road vehicles and SUVs. High-quality robust auxiliary headlamp with aluminium housing and holder made of glass fibre (PA66 + GF). The low mounting depth of 95 mm allows flexible mounting in numerous mounting positions. ECE type-approved (ECE-R149 high beam, ECE-R148 position light (white position light). White position light for use as an auxiliary driving lamp in public road traffic.

Technical information:

• Stylish selectable white or amber front position/side light
• Dedicated wire to run position light without primary LEDs
• High-quality construction and durability
• Polycarbonate lens
• Anti-UV hard coating
• Protective covers available in our shop
• Dual voltage 12v/24v
• 36W
• 1800 Lumen
• 6000K Colour temperature
• ECE R10, R148 & R149 Approved
• E-Marked
• IP67 Compliant (Water and dust proof)
• Pre-wired with 500mm length of cable with bare wire ends
• Complete with mounting bracket

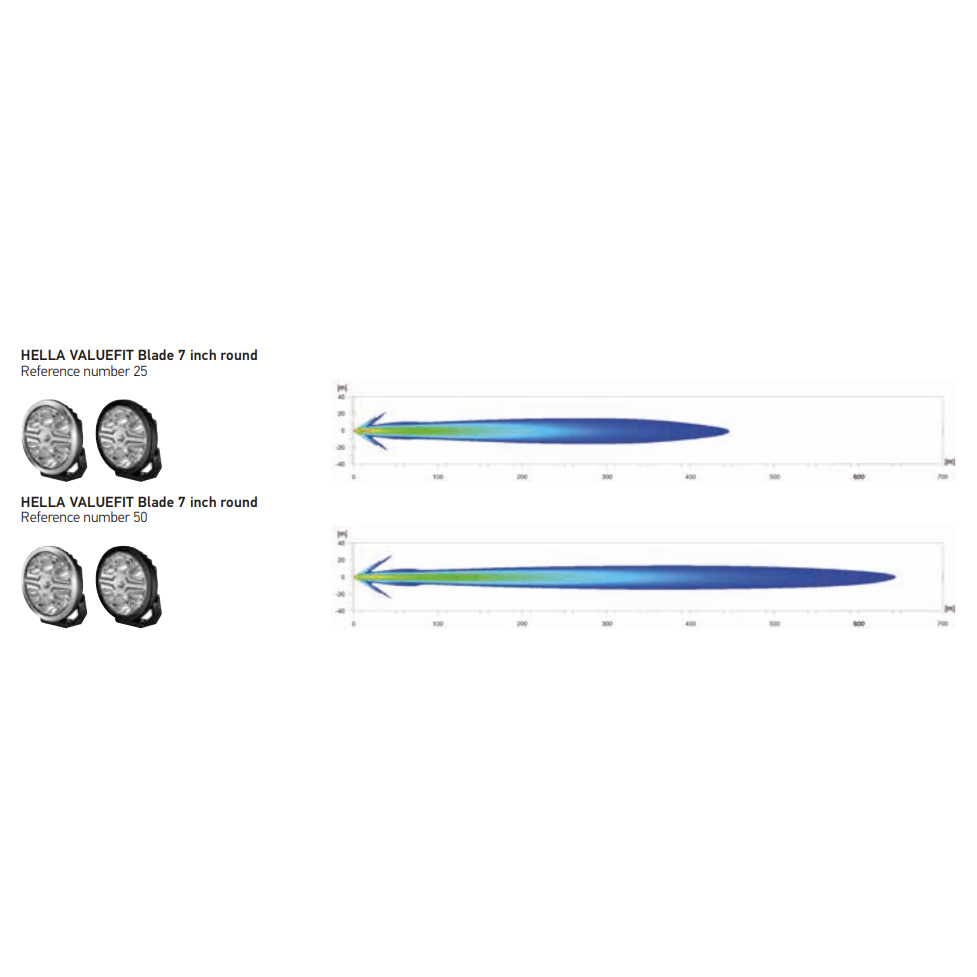

• Ref.50 allows the installer to fit a max 2 lights together. For more information about ECE reference (Ref.) values and what they mean for light output and road approval, read our article What Does the Reference Number (Ref.) Mean?

Product Datasheet & Mounting Datasheet

Access detailed specifications and installation information by viewing the Product Datasheet & Mounting Datasheet for the Hella Blade 9″ LED Spotlight.
