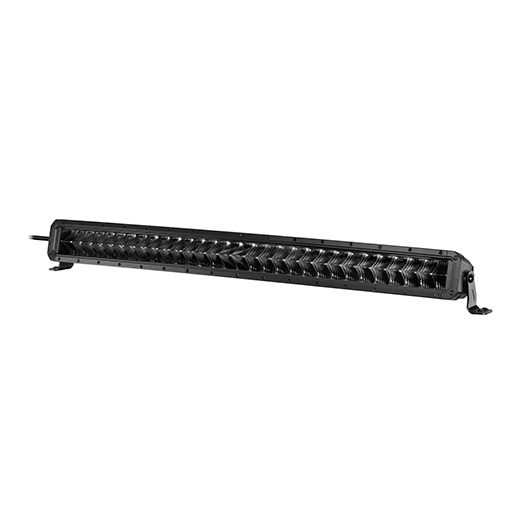

Hella LED-Spotlight – Black Magic Tough Lightbar 30″ 12/24V 7900lm Double Row/Curved

The HELLA Black Magic 30″ Double Row Curved LED Lightbar is designed to deliver exceptional long-range illumination for demanding driving conditions. Featuring HELLA’s distinctive all-black styling, this robust lightbar combines outstanding performance with a modern appearance, making it an ideal choice for trucks, 4x4s, off-road vehicles and commercial applications. Its advanced reflector technology produces a powerful, evenly distributed high beam while maintaining full ECE approval for road use.

Delivering up to 9,200 effective lumens and an ECE Reference Number of 40, the Black Magic lightbar provides excellent visibility in challenging environments. The durable aluminium housing, crystal-clear lens and IP68/IP69K protection rating ensure reliable operation in harsh weather and extreme working conditions. Supplied with an extra-long 2 metre cable with open wire ends, it can be easily installed on a roof, roof bar, radiator grille or bumper.

Technical Information

• Dimensions: Length 819 mm, Width 75 mm, Height 91 mm, Depth 100 mm
• Light Function: High beam (LED)
• Effective Light Output: Up to 9,200 lumens
• Colour Temperature: 5,700 K
• ECE Reference Number: 40. For more information about ECE reference (Ref.) values and what they mean for light output and road approval, read our article What Does the Reference Number (Ref.) Mean?
• Approval: ECE R149 (high beam) and ECE R10 (EMC)
• Protection Rating: IP68 / IP69K
• Housing Material: Aluminium
• Lens Colour: Crystal clear
• Mounting: Vertical screw-on installation
• Cable Length: 2,000 mm with open wire ends
• Recommended Installation Locations: Roof, roof bar, radiator grille or bumper

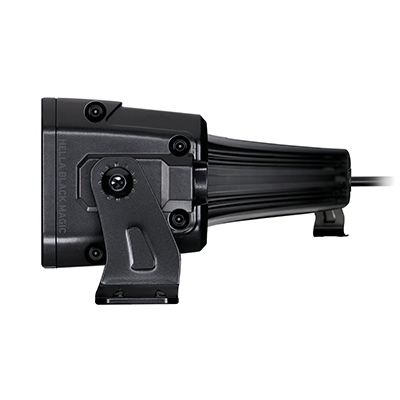

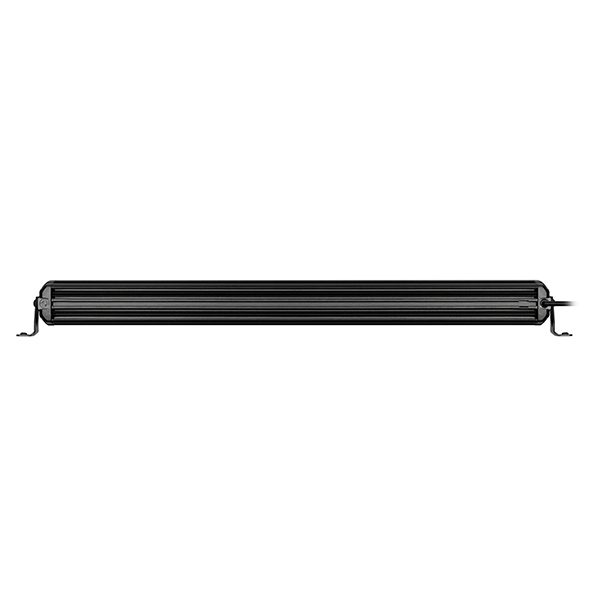

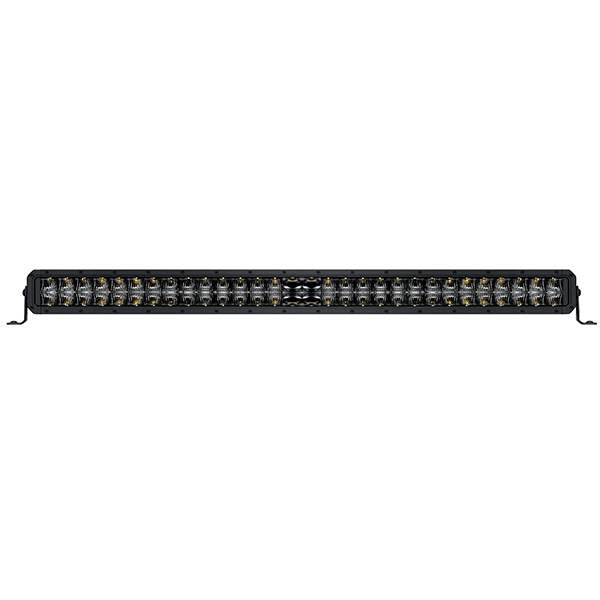

• Design: 30″ curved double-row LED lightbar with HELLA Black Magic all-black styling and durable black mounting brackets
