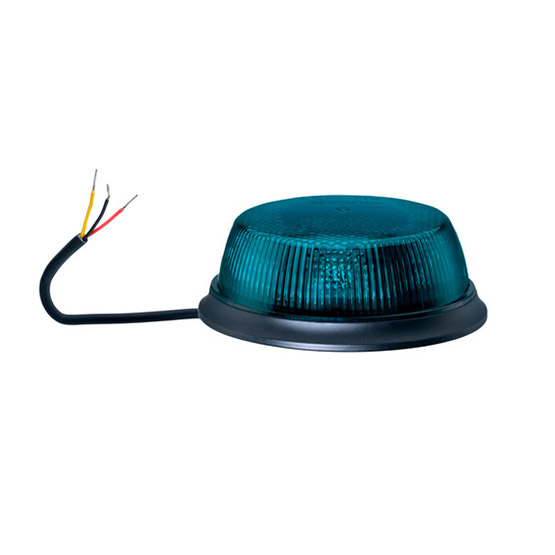

Hella ValueFit SLIM Green Beacon

The HELLA ValueFit SLIM Green Beacon is designed specifically for the construction vehicle aftermarket, offering a modern and slim profile that enhances vehicle aesthetics while ensuring reliable functionality. The green lens is certified under ECE-R10 and SAE J845 Class 3, making it suitable for specialised warning applications on construction and service vehicles.

Packaged in standard HELLA ValueFit packaging, the beacon is available in two mounting styles. The spigot (single bolt) version has a compact height of 43 mm, while the magnet-mounted variant stands at 51 mm. Both options provide a cohesive and compatible look for construction vehicles. The aluminium base supports effective heat dissipation, and the impact-resistant polycarbonate lens ensures long-term durability.

The beacon includes overvoltage and electronic protection to guard against electrical surges, while IP67 and IP69K ratings ensure protection during high-pressure cleaning. Engineered magnets withstand vibration levels of up to 5.8 G and 3.8 G in various directions, making the magnet base version suitable for vehicles operating at speeds of up to 120 km/h.

Features:

• Safe: EMC-compliant (CISPR 25 Class 3) with surge and interference protection
• Flexible: Available in spigot and magnet mounting options
• Durable: Slim design with aluminum base, polycarbonate lens, and IP67/IP69K protection

Technical information:

• Number of LEDs: 12
• Power consumption: 24W
• Light functions: 2 – With rotating warning signal/Double flasher – Lens Colour: green
• Housing material: Aluminium. Housing Colour: black. Diffusing Lens Material: PC (Polycarbonate)
• Height: 43.5mm
• Rotating and double flash with 12 LEDs
• ECE R10 and ECE R65 TA1 tested, SAE Class 1
• Compliant: CISPR 25 Class 3
• Protection class: IP67 / IP69K
