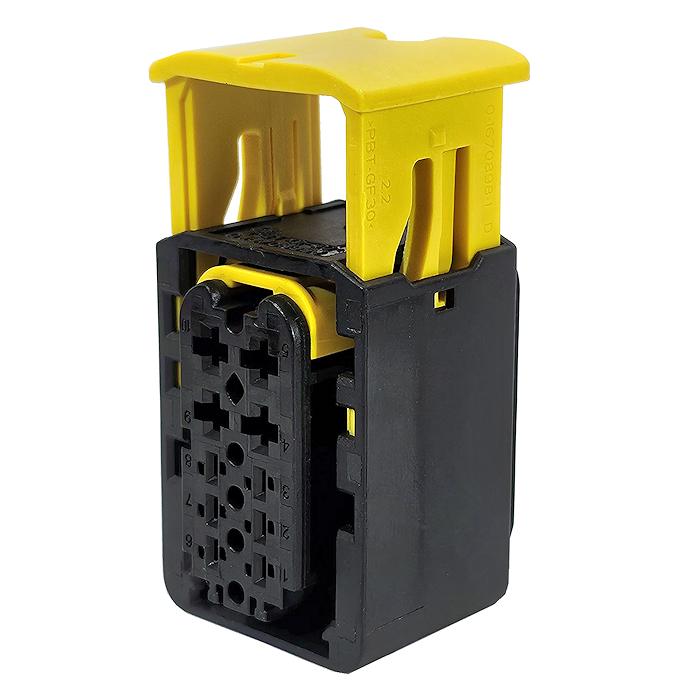

Durite 10PIN MCP 1.5/2.8 Connector w/ Terminals & Wire Seals 0-012-12
Durite 0-012-12 10-PIN MCP HDSCS thermoplastic housing. 12 or 24 Volts DC connectors complete with four 2.8mm and six 1.5mm female terminals and seals to achieve IP67 protection.
Competitive Pricing
Cost-effective solutions
Quality Products
Trusted quality
Industry Knowledge
30+ years of experience
Customer Driven
Tailored solutions
Durite 10PIN MCP 1.5/2.8 Connector w/ Terminals & Wire Seals 0-012-12
Durite 0-012-12 10-PIN MCP HDSCS thermoplastic housing. 12 or 24 Volts DC connectors complete with four 2.8mm and six 1.5mm female terminals and seals to achieve IP67 protection.
0-012-12 Technical information:
- Voltage 12V-24VDC.
- Maximum Amperage: 40A (Large terminals), 20A (Small terminals).
- Receptacle housings designed to withstand high vibration and mechanical stress.
- Highly reliable and durable design.
- High vibration resistance.
- IP67 protection against dust and water.
- Integrated secondary locking device.
- Slide locking mechanism for secure mating.
- Polarization and keying.
- Low mating force.

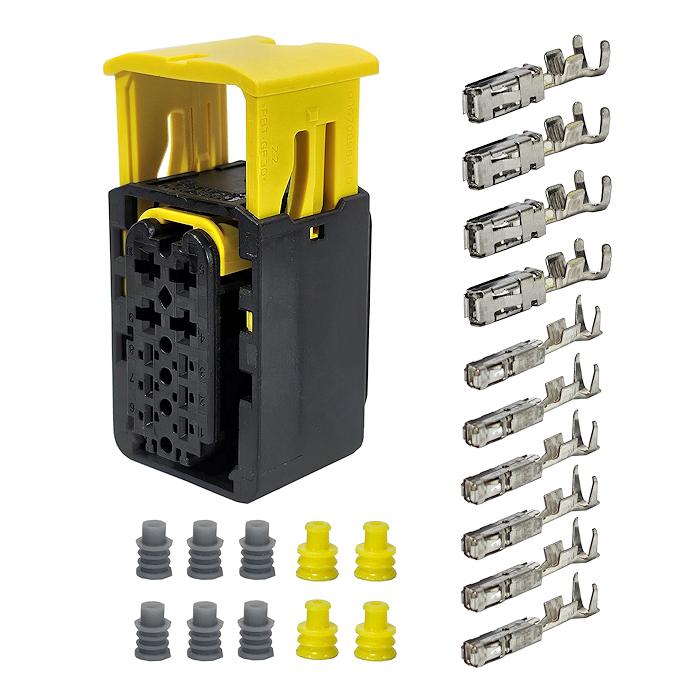

- Pack Contents: 1 x housing, 4 x 2.8mm female terminals, 6 x 1.5mm female terminals, 4 x Yellow seals and 6 x Grey seals.
- Pack Quantity: 1 piece.
| Brand |
Durite |
|---|
