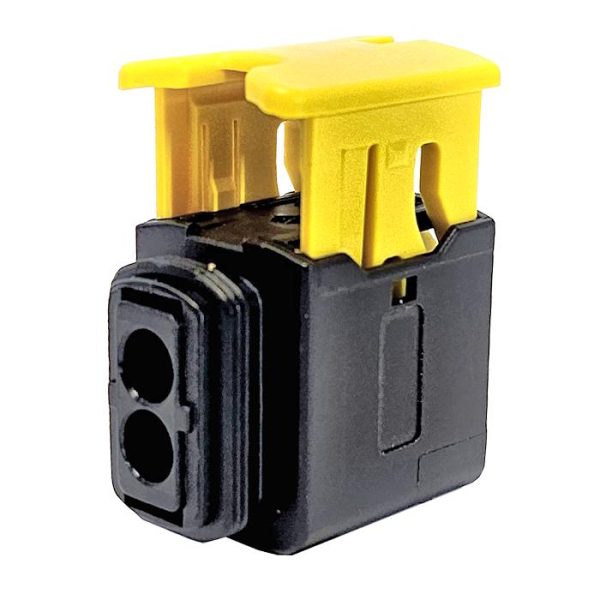

Durite 2PIN MCP 2.8 Connector w/ Terminals & Wire Seals 0-012-04

2-pin MCP 2.8 receptacle housings with terminals and wire seals are designed for demanding automotive and industrial applications. Engineered to resist high vibration and mechanical stress, these housings offer secure and reliable electrical connections even in harsh environments. With IP67-rated sealing, integrated secondary locking, and a slide-lock mechanism, they ensure robust performance and long service life.

Technical specifications:

• Number of positions: 2

• Terminal type: MCP 2.8

• Wire range: 0.5 mm² to 2.5 mm²

• Current rating: up to 40 A (depending on wire gauge)

• Voltage rating: up to 48 V DC

• Ingress protection: IP67 when mated (dust-tight and protected against temporary immersion in water)

• Temperature range: -40 °C to +125 °C

• Locking mechanism: slide-lock for secure and reliable mating

• Secondary locking: integrated TPA (Terminal Position Assurance)

• Sealing: includes wire seals for individual conductors

• Material: high-performance thermoplastic, resistant to fuels and chemicals

• Mechanical durability: >50 mating cycles

• Vibration resistance: high, suitable for engine and chassis applications

• Polarisation: keyed housing to prevent mismating
